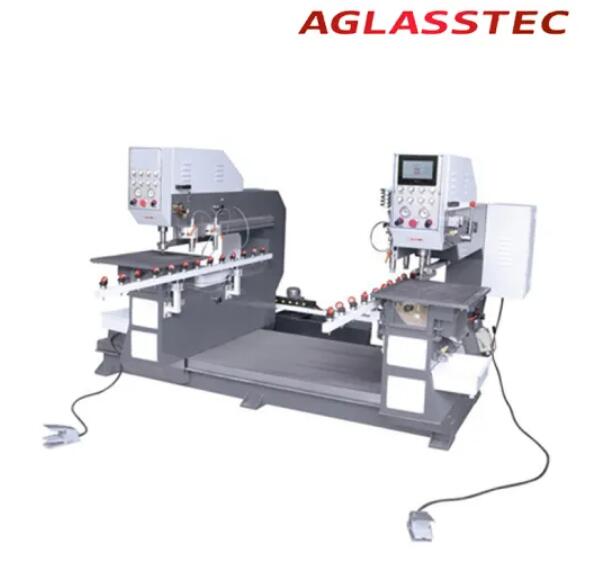

Automatic Double-Head Glass Drilling Machine

Product ID : SSZ080

Product Attributes :

Linear guide rail guiding, ball screw to drive, accurate positioning and guidance

Product Description

Model NO.

FGD-AD SSZ080

Trademark

AGLASSTEC

Origin

China

HS Code

8464901900

I.Description

Linear guide rail guiding, ball screw to drive, accurate positioning and guidance
Button or foot switch start, single cycle working mode and continuous cycle working mode are available.
Two drill bits can linkage control; each drill bit can work independent
Suitable for batch and bulk production

II. Technical parameters

The drilling depth of Y axis	1250mm
The min. distance between holes	470mm
The max. distance between holes	2000mm
Glass thickness	3-19mm
Hole diameter	Dia.4 - 80mm
The max. feeding distance of Z axis	40mm
The height of table	900±50mm
The overall dimension	438022001700mm
Power supply	Voltage	380V, 50Hz
	Watt	5.65 KW
Air pressure	Connection	Dia.8mm air pipe
	Pressure	0.6 Mpa
	Water flow	18 m³/ hour
Lubricant	20#
Water source	Connection	Dia. 10mm water pipe
	Pressure	≥0.3 Mpa
Enviroment temperature	6-40 ºC
