Product Description
Basic Info.

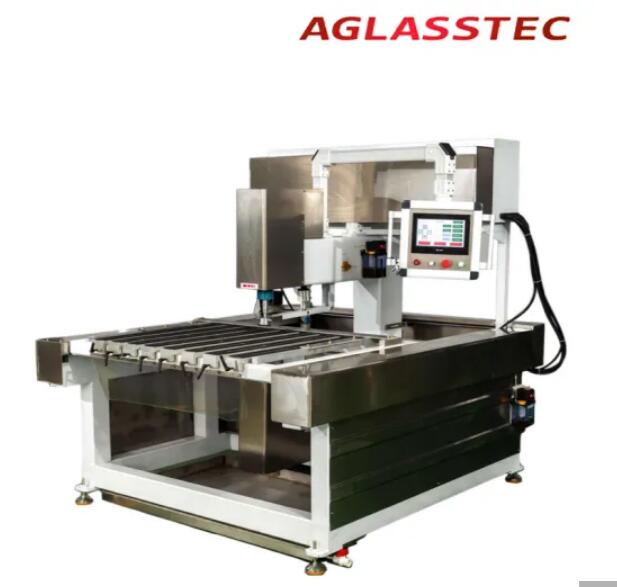

Model NO.
FGD-AD NC2080
Trademark
AGLASSTEC
Origin
China
HS Code
8464901900
I.Description
- X axis,Y axis servo control, accurate positioning

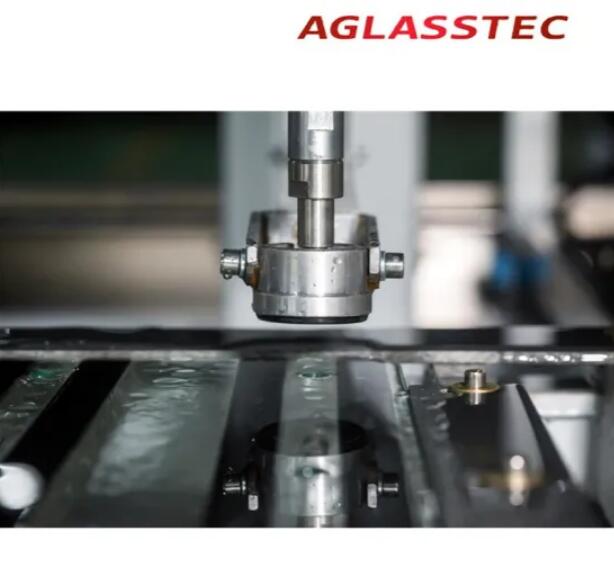

- The upper drill bit can realize manual positioning
- Drill bit 1 and Drill bit 2 can work independent at same time
- Suitable for processing household appliances, furniture, guardrail glass

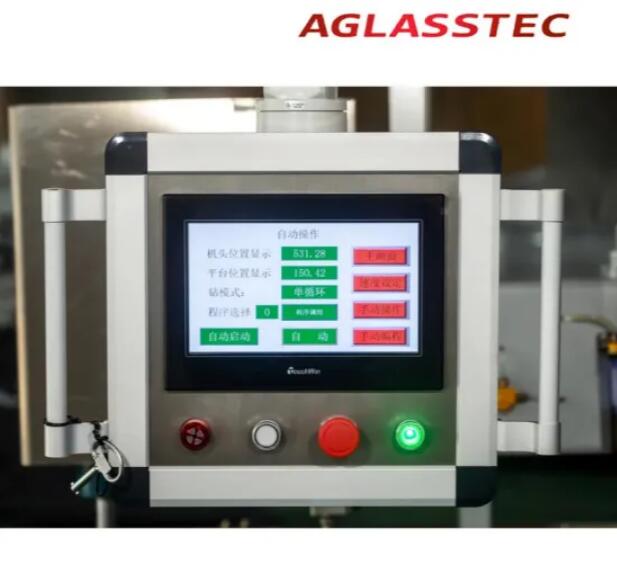

- Operation mode: manual mode and automatic mode
- Data storage: the working data can be stored for the next processing
- Positioning setting: input coordinates
II. Technical parameters
| X axis effective range | 2200mm | |
| Y axis effective range | 800mm | |
| Glass thickness | 5-15mm | |
| Hole diameter | Dia.4 - 60mm | |
| The max. feeding distance of Z axis | 40mm | |
| The height of table | 900±50mm | |
| The overall dimension | 4380*2200*1700mm | |
| Power supply | Voltage | 380V, 50Hz |
| Watt | 8.85 KW | |
| Air pressure | Connection | Dia.8mm air pipe |
| Pressure | 0.6 Mpa | |
| Water flow | 18 m³/ hour | |

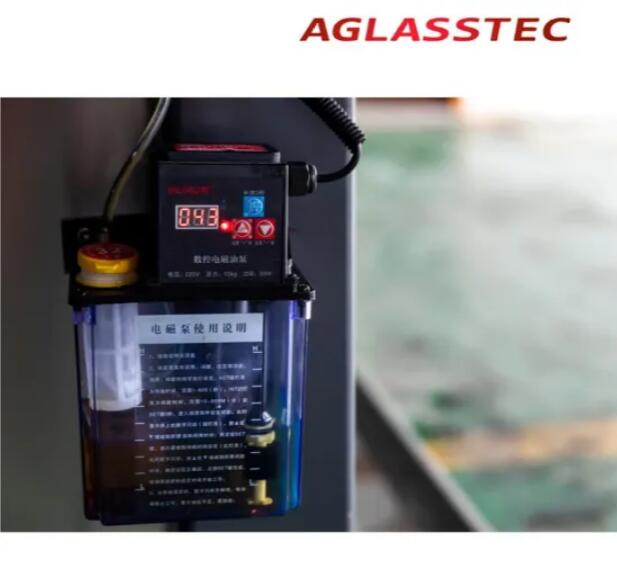

| Lubricant | 20# | |
| Water source | Connection | Dia. 10mm water pipe |
| Pressure | ≥0.3 Mpa | |
| Enviroment temperature | 6-40 ºC | |
