Model NO.
FGE-VB-ZX272E
Condition
New
Total Power
20kw
Min. Glass Size
30mmx30mm
Glass Thickness
3mm-40mm
Max. Arris Width
2.5mm
Grinding Depth
3mm
Working Speed
0.8m-3.8m/Min
Trademark
FGTECH
Transport Package
Iron Frame & Shrink Film
Specification
Overall Dimension: 8.4mx1.2mx2.5m
Origin
China
Description of the Equipment.

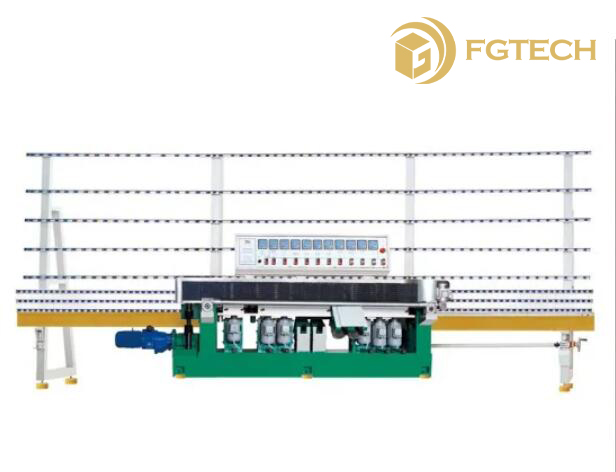

1.Automatic glass straight line polishing machine:FGE-VB-ZX272E
Ball bearing conveyor system.
Technical Specification:
| Spindles: | 11 heads. |
| working Speed: | 0.8m-3.8m/min |
| Grinding depth: | 3mm |
| Max. arris width: | 2.5mm |
| Glass thickness: | 3mm-40mm |
| Min. glass Size: | 30mmX30mm or 25mm glass strip. |
| Total Power: | 20kw |
| Overall Dimension: | 8.4mx1.2mx2.5m |
Description:
1.Control system:
a.This machine use PLC control and touch panel operating system. The machine can run in automatic mode and manual mode.
b.Conveyor:

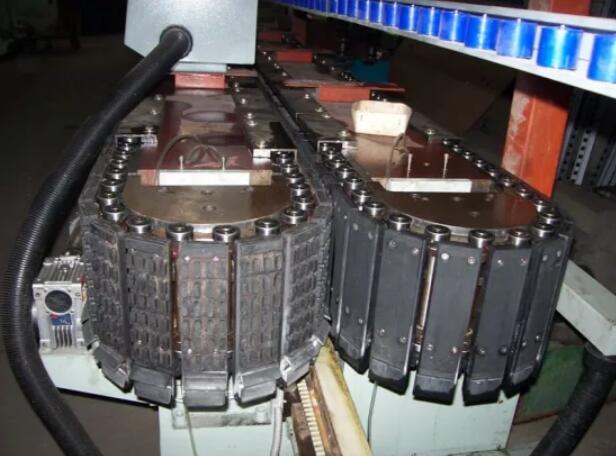

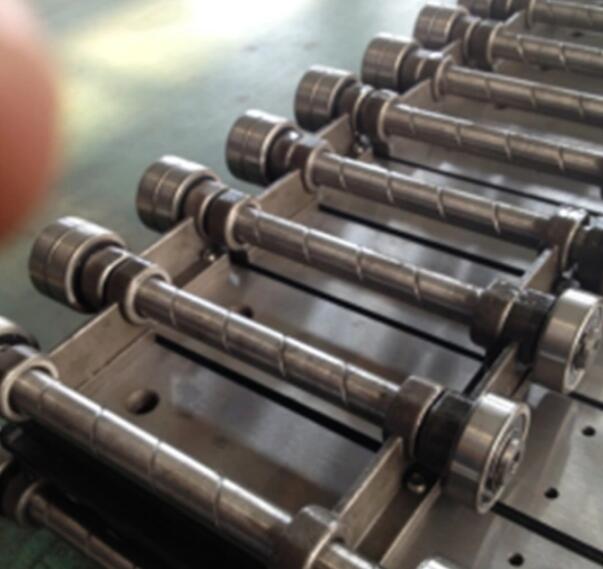

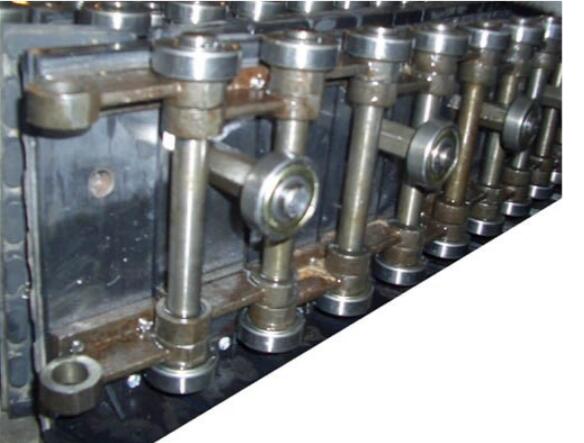

Conveyor adopt chainless rolling transmitting system, which consists of three bearings rolling along high precision tempered steel guides, the movement of glass is very stable.
c.The machine has a glass thickness protection mechanism. When wrong thickness glass is put in the machine. The machine will stop automatically. This protects the bearings from crushing.
d.Loading/off loading conveyor use timing belt. It can adjust height to set different glass removal.
e.Glass support frame use Aluminum extrusion bar, with support roller.
f.The conveyor cover is made in stainless steel.
f.The conveyor cover is made in stainless steel.

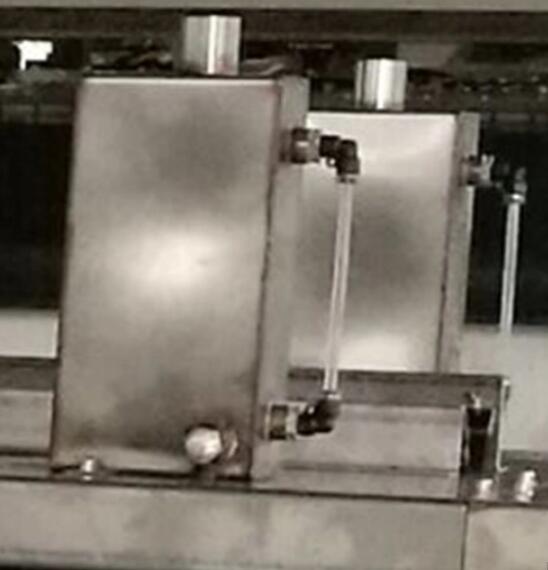

g.The ball bearings conveyor are lubricated by oil from two oil tanks on top of conveyor cover
h.The front conveyor movement is motorized. It can be adjusted through electrical button on working panel or adjustable automatically. The thickness is displayed on screen. There is also a mechanical readout to show glass thickness.
i.Working speed adjustment:
i.Working speed adjustment:
Working speed is adjustable through Stepless regulator.
j.Spindles are driven by high quality ABB motors.
Configuration of grinding wheels:
| Type of wheel | internal diameter (mm) |
external diameter (mm) |
Grain (mesh) |
Control System | |
| Pos.1 | Diamond wheel | 22 | 150 | 100 | Mechanical |
| Pos.2 | Diamond wheel | 22 | 150 | 230 | Mechanical |
| Pos.3 | Diamond wheel | 22 | 150 | 320 | Mechanical |
| Pos4. | Resin wheel | 22 | 130 | 180 | Mechanical |
| Pos.5 | 10S40 wheel | 60 | 130 | --- | Mechanical |
| Pos.6 | Resin wheel | 22 | 130 | 180 | Mechanical |
| Pos.7 | 10S40 wheel | 60 | 130 | --- | Mechanical |
| Pos.8 | Resin wheel | 22 | 150 | 320 | Mechanical |
| Pos.9 | 10S40wheel | 70 | 150 | --- | Mechanical |
| Pos.10 | felt wheel | 70 | 150 | --- | Mechanical |
| Pos.11 | felt wheel | 70 | 150 | --- | Mechanical |
