Basic Info.

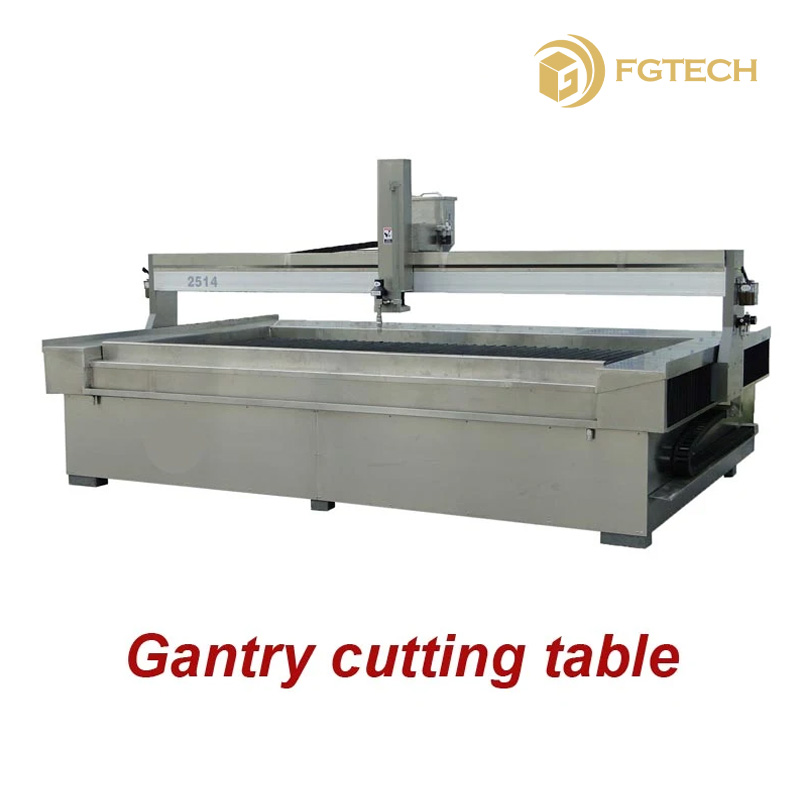

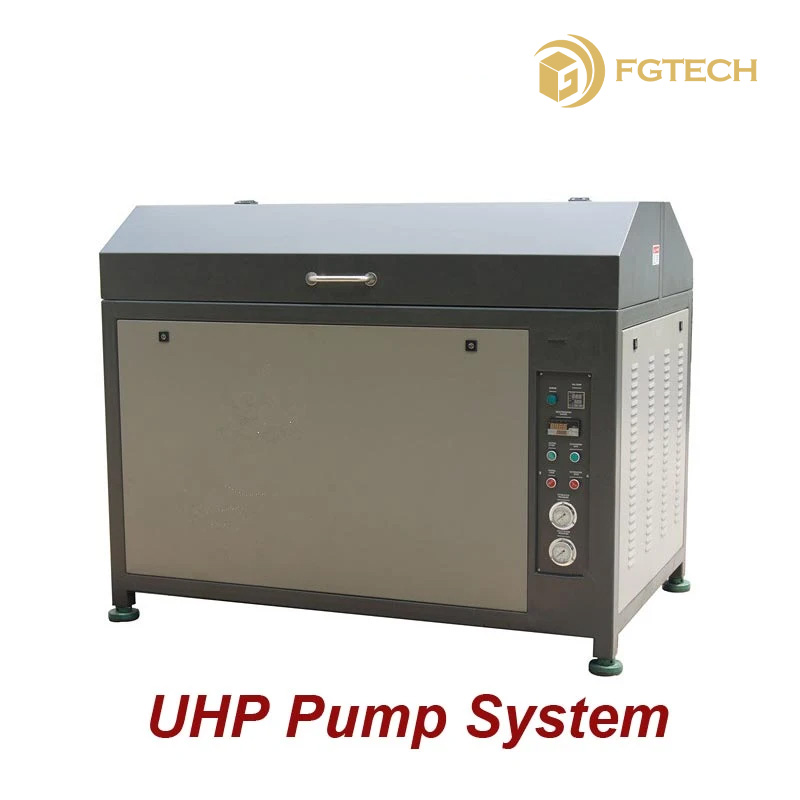

With the imported intensifier, 4000B-2515A Waterjet machine, Max pressure is 380MPA and working pressure is 320~350MPA.The pump use aircooling system(do not need cooling such as cold water machine or cooling tower etc.),connect the electricity can immediately use, CNC Cutting table is Gantry type;Go together with the auto abrasive delivery system.
| Number | The main function |
| 1 | Cutting table Size(X×Y):2700*1600mm |
| 2 | X Axis Cutting stroke:2500mm |
| 3 | Y Axis Cutting stroke:1500mm |
| 4 | Z Axis Cutting stroke:120mm |
| 5 | Gantry structure makes the machine have good stability and rationality |
| 6 | X Axis whole turn |
| 7 | Stainless steel catcher tank and out Plate : No rusty |
| 8 | ball bearing screw and linear guide,guarantees a high accuracy |
| 9 | Special designed Cover guarantees a long using life of the Motion |
| 10 | Lubricated system provides a simple and easy maintenance |
| 11 | Repeat accuracy:0.05mm |
| 12 | Rapid position speed:10000mm/min |
| 13 | travel limit protects function |
| 14 | Taiwan ABBA ball bearing screw |
| 15 | Taiwan ABBA linear guide |
| 16 | The operation is simple, convenient, easy to learn |
| 17 | The horizontal beam is aluminum alloy manufacturing,guarantees a best stability and no shake or distortion ever with a high speed operation. |
| 18 | X Axis and Y Axis adopt Japanese Yaskawa servo system, guarantee a high cutting accuracy, high speed , increase production |
| 19 | X Axis ball screw no turn, its nut turns |

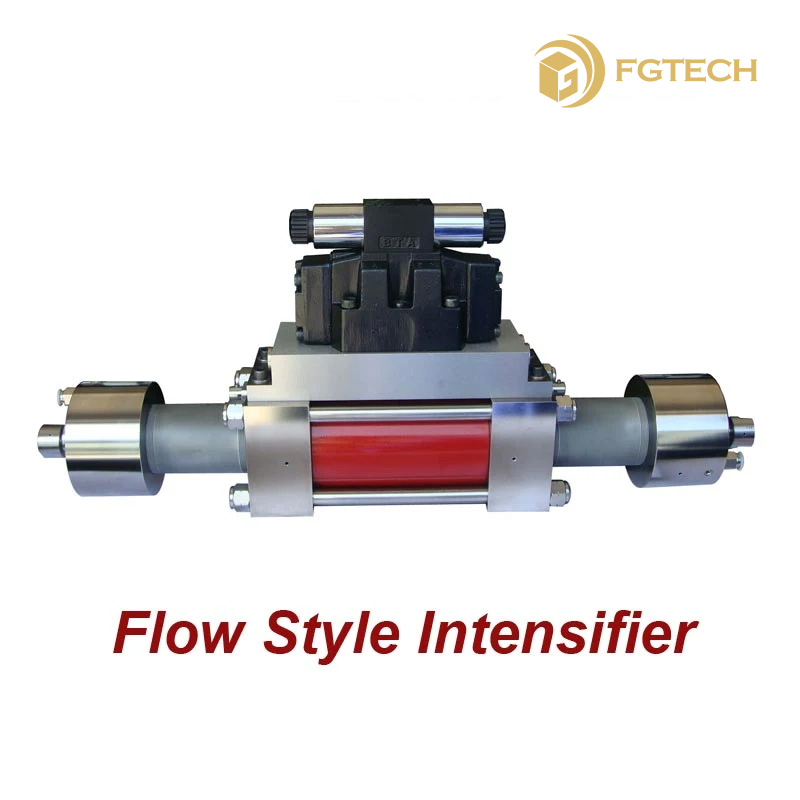

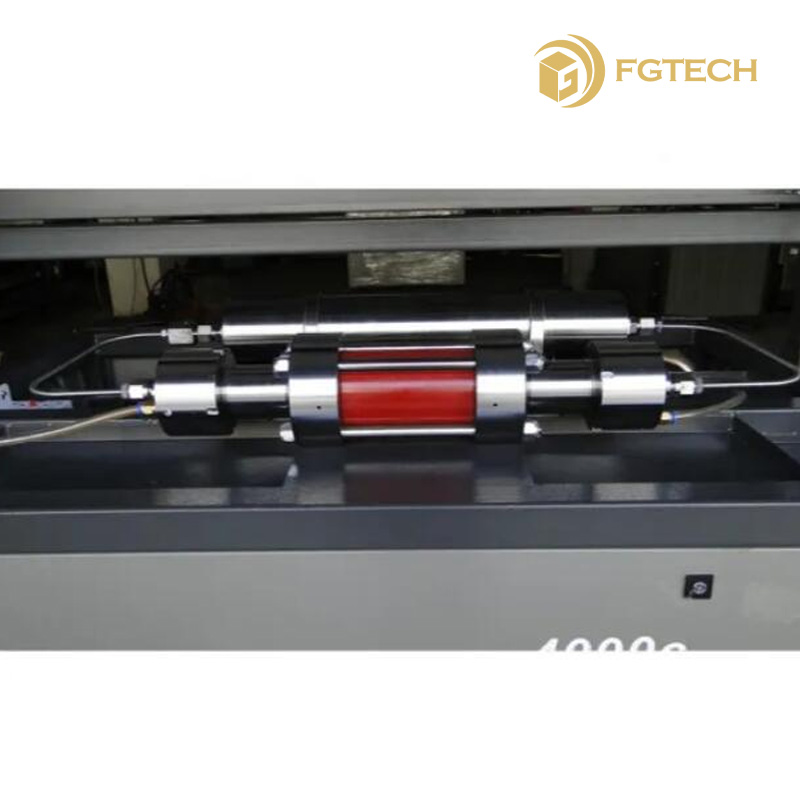

| 1 | Flow style intensifier imported from USA |

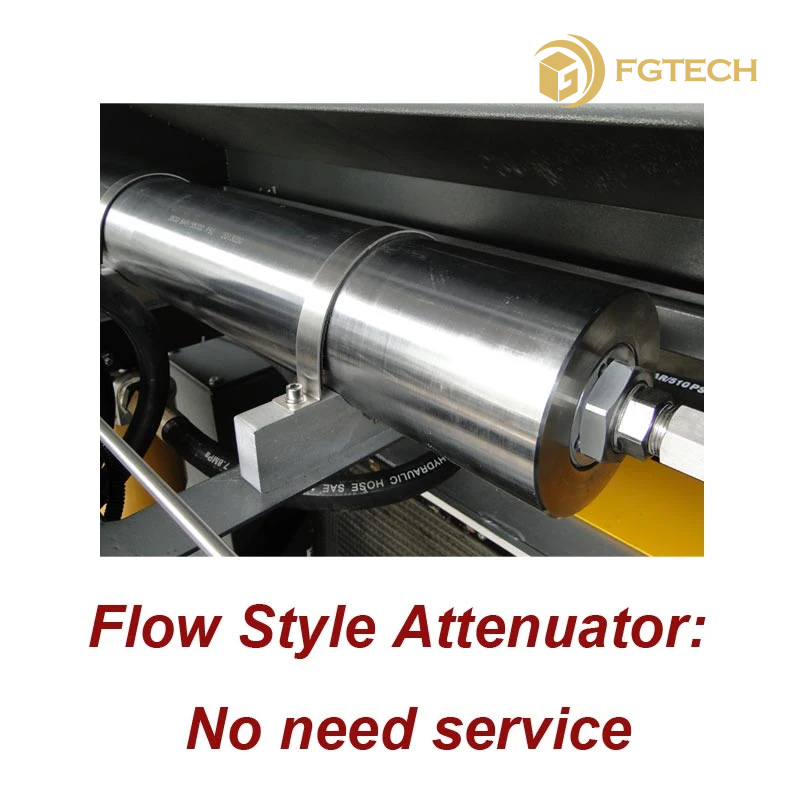

| 2 | Flow style Attenuator let the High Pressure more stable, cutting faster |
| 3 | Max pressure:380Mpa(55000psi) |
| 4 | Working pressure: 320~350Mpa |
| 5 | Max water flow:3.7L/MIN |
| 6 | Orifice(dia): 0.30mm |
| 7 | Power: 30KW/40HP |
| 8 | Shift way:electric shift |
| 9 | The work pressure can arbitrarily move to regulate |
| 10 | Oil temperature numerical gauge,too high automatically shut down |
| 11 | Numerical HP Gauge |
| 12 | Over pressure automatically shuts down function |
| 13 | Equipped with Double Pressure Valve. The low pressure drills hole function and cut brittleness material no broken |
| 14 | Cooling way:Air cooling type |
3. Abrasive delivery system
Hang type abrasive box;
Automatically inhale abrasive;
Regulate the amount of abrasive;

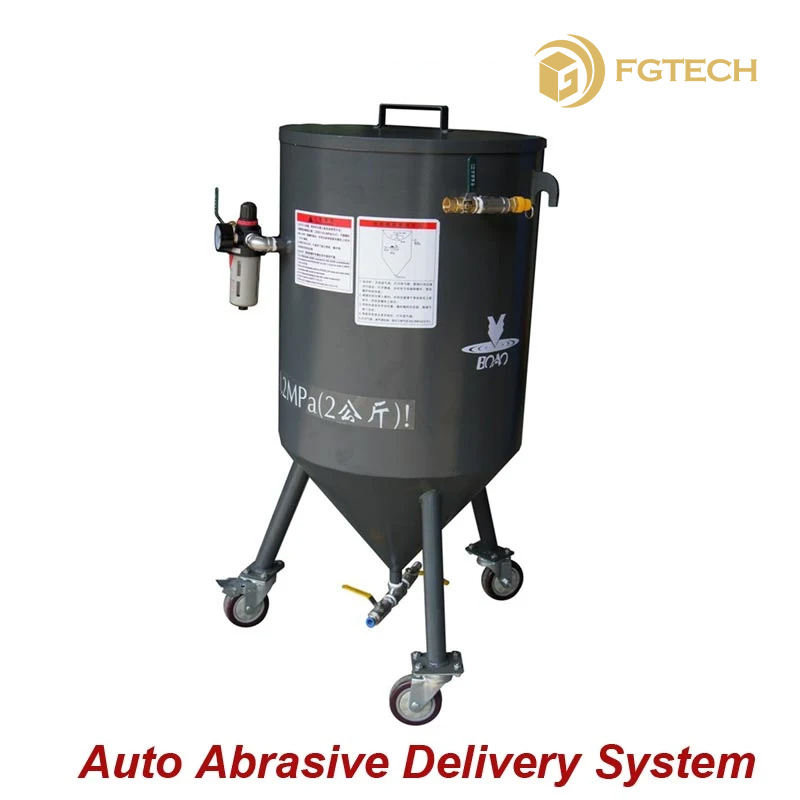

Auto Abrasive Delivery System has the abrasive and delivery the abrasive to the bucket automatically, the design shows BOAO continuous efficiency and reduce labor requirements.
4. HP ON/OFF VALVE

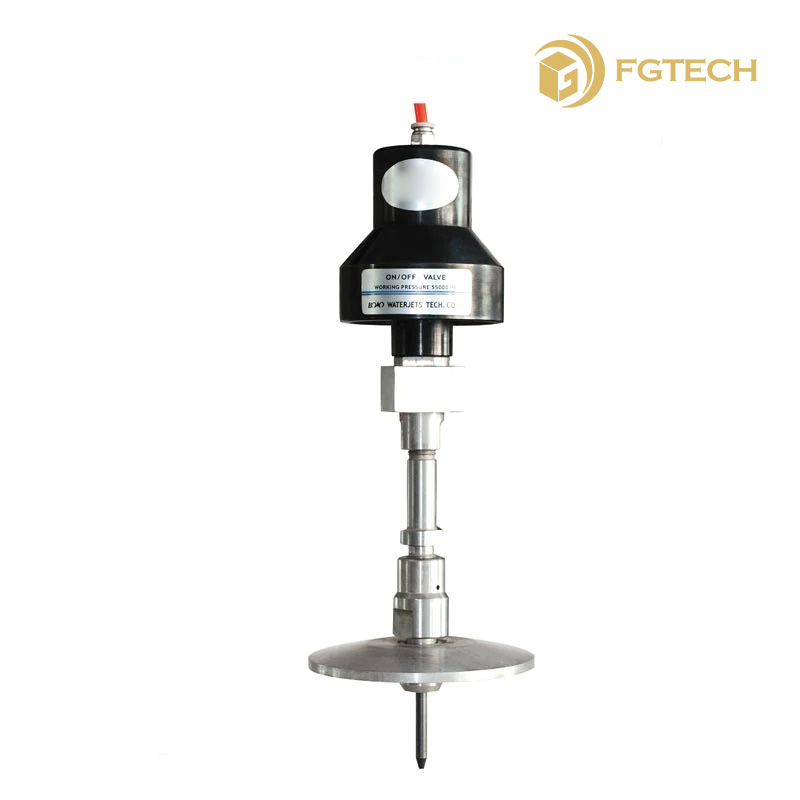

On/off Valve designed by the USA;
Air Actuated valve can carry out high pressure water sudden open and close, consumedly reduced Water back;
CNC assistance function to carry out the automatic control of the high pressure water;
Holding pressure adjustable,reduce the time of piercing;
Act intelligent credibility.
5. Cutting Head
Imported DP2000 style cutting head
The American type Orifice Assembly;
From corrected function to reduce time of assemble;
Spare parts replaces very conveniently.
6. Controller System

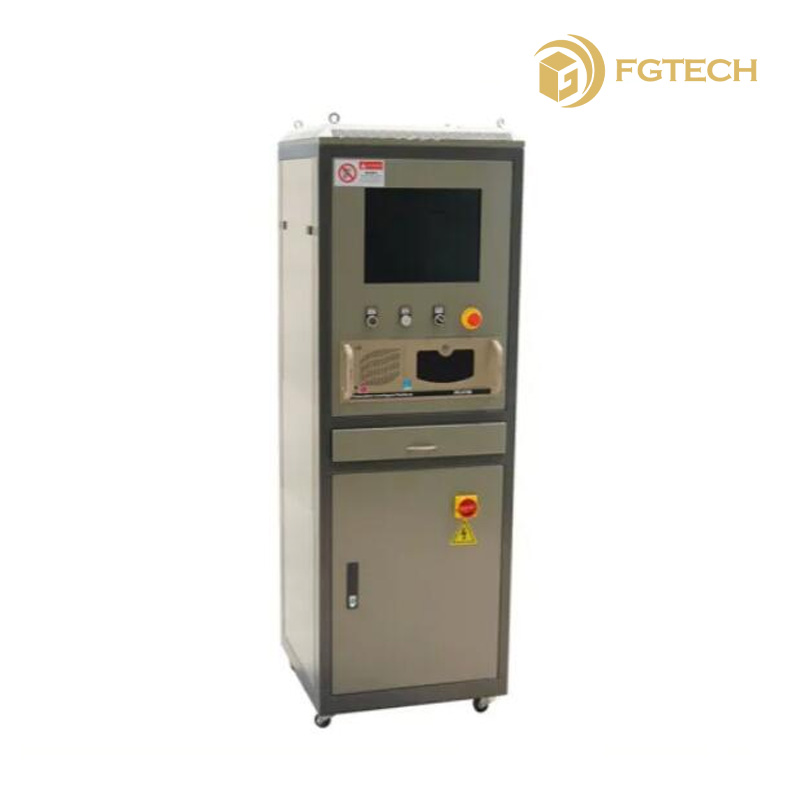

Window XP waterjet software .The design is user-friendly;
Pc-base famous industrial computer, G-code style controller;
Simple electric design, PLC control;
Program synchronous sketch emulation, avoid processing a mistake;
Add up HP time;
Automatically control cutting inlet and outlet, automatic show the length of cutting trace for calculation cost, save operation time;
You can set X.Y axis travel sot spacing. Avoiding cutting head exceed the travel;
The small arc automatically decelerates function;
You can set the starting frequency of the servomotor;
The system can automatically generate the CNC processing program;
Combine AutoCAD drawing with technic data. Achieve the communication between PC and CNC;
Receive the DXF file from the AUTCAD or draw sketch by oneself
Cutting parameter
| Material | Thickness (mm) | Cutting speed (mm/min) |
| Stainless steel | 1 | 1300 |
| 3 | 600 | |
| 6 | 300 | |
| 10 | 200 | |
| 16 | 120 | |
| 20 | 85 | |
| 30 | 40 | |
| 55 | 20 | |
| 65 | 10 | |
| copperplate | 3 | 1500 |
| 5 | 950 | |
| Aluminum plate | <span style="box-sizin |
