PRODUCT

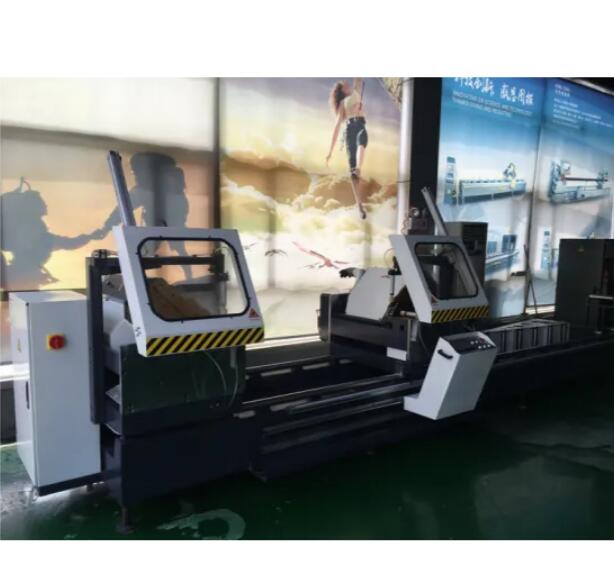

Fgc-AC383 CNC Double Mitre Saw in Heavy Duty
Product ID : FGC-AC383
Product Attributes :
1-Mainly used for cutting aluminum profiles, and also available for UPVC profile.
2-two saw blade can cut profile simultaneously or separately; the cutting angle is 45 & 90 degree
3-it is equipped with Panasonic NC system and German ELGO original feedback system.
4-equipped with imported Italy motor, so its precision is high.
Product Description
Basic Info.
Model NO.
FGC-AC383
Main Motor Power
2.2kw X 2
Main Motor Rotation Speed
2850 Rpm
Trademark
FGTECH
Transport Package
Iron Frame & Shrink Film
Specification
Saw cutting length: 320(90° )-/4500mm
Origin
China
1-Mainly used for cutting aluminum profiles, and also available for UPVC profile.
2-two saw blade can cut profile simultaneously or separately; the cutting angle is 45 & 90 degree
3-it is equipped with Panasonic NC system and German ELGO original feedback system.
4-equipped with imported Italy motor, so its precision is high.
MAIN TECHNIQUE PARAMETER
| 1. | Saw cutting length | 320(90°)-/4500mm |
| 2. | Saw cutting (W×H) | 260 x 135mm |
| 3. | Main motor power | 2.2kw x 2 |
| 4. | Main motor rotation speed | 2850 rpm |
| 5. | Saw blade dimension | ø500 x ø 30 x 120T |
| 6. | Swing angle of saw blade | 45 & 90 degree |
| 7. | Saw blade feeding speed | 0~3m/min |
| 8. | Saw blade retracting speed | 2~3m/min |
| 9. | Operation air pressure | 0.6~0.8Mpa |
| 10. | Overall dimension(L×W×H) | 5800 x 1570 x 1720mm |
| 11. | Weight | 1900kg |
